SP1081 (N100A)
Home / DTH Hammers / SP Series
SP1081 (N100A)
DTH Hammer
This Series high air pressure DTH hammer work without foot-valve is designed and developed by our own, which is the one of the most leading DTH hammer in the world.
- Avoid the problem happens on foot valve, fracture, expansion and contraction.
- Lower air comsumption and higher impact frequency. 15-30% higher drilling efficiency than the bit with foot valve.
- Simpler structure and less spare parts, makes easier and cheaper maintenance.
- Heat-hardended spare parts, makes longer serving life and less problem.
- Thread connection for top sub and drive chuck, make easier disassembly.

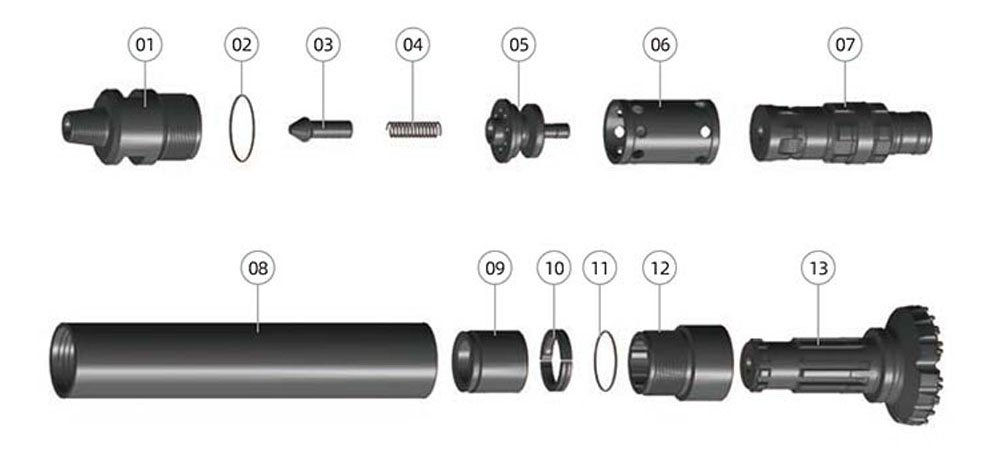

SP1081 (N100A) Structure
| Ref. | Parts | Weight | Part No. | Ref. | Parts | Weight | Part No. |
|---|---|---|---|---|---|---|---|
| 01 | Top Sub | 62 Kg | 01-SP1081-01 | 08 | Piston Case | 98 Kg | 01-SP1081-08 |
| 02 | “O”Ring | 0.02 Kg | 01-SP1081-02 | 09 | Guided Sleeve | 11.5 kg | 01-SP1081-09 |
| 03 | Check Valve | 1.5 Kg | 01-SP1081-03 | 10 | Retainer Ring | 2.2 kg | 01-SP1081-10 |
| 04 | Spring | 0.20 Kg | 01-SP1081-04 | 11 | “O”Rinc | 0.02 Kg | 01-SP1081-11 |
| 05 | Valve Seat | 13.5 Kg | 01-SP1081-05 | 12 | Drive Chuck | 26kg | 01-SP1081-12 |
| 06 | Inner Cylinder | 13 Kg | 01-SP1081-06 | 13 | Drill Bit | 01-SP1081-13 | |
| 07 | Piston | 71.5 Kg | 01-SP1081-07 |
Technical Parameter
| Length(Less bit) | Weight | Outer Diameter | Connection Thread | Bit Shank | Hole Range |
|---|---|---|---|---|---|
| 1475mm | 299.5Kg | φ225mm | API5 1/2″REG | NUMA 100A | φ254-φ311mm |
| Work Pressure | Recommended Rotation Speed | Air Consumption | |||
| 1.8Mpa | 2.4Mpa | ||||
| 1.5-3.3 Mpa | 25～50 r/min | 36m³/min | 58m³/min | ||
