BR1 DTH Hammer
DTH hammer was designed by international advanced high-tech theory, which makes the hammer have better energy transduction, faster working speed and less air consumption.
- The pressure are between 0.7 MPa and 1.75 MPa.
- Valveless hammers.
- Simple structure, esily to assemble and to disassemble, long lifespan.
- Higher impulse and faster drilling rate.
- Lower air consumption and lower oil consumption. A hole can be drilled on the check valve to provide more efficient cuttings discharge.
- Especially suitable for quarrying.

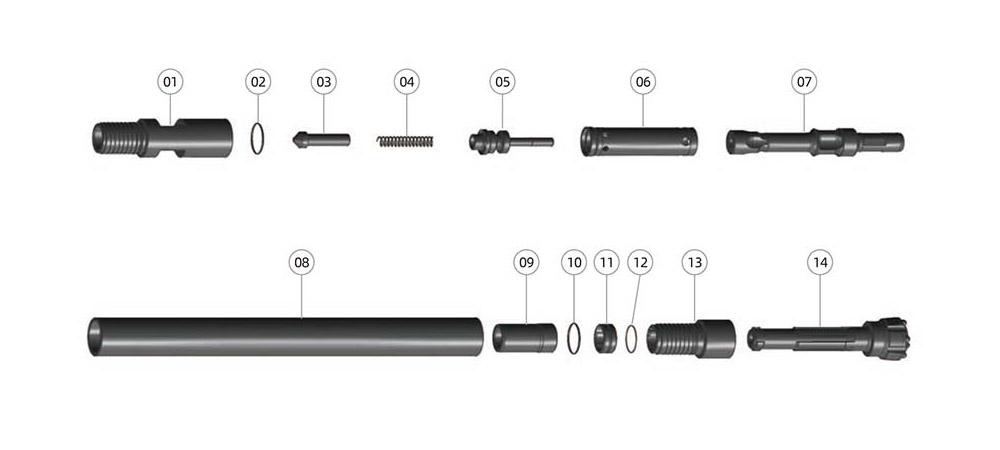

BR1 Structure
| Ref. | Parts | Weight | Part No. | Ref. | Parts | Weight | Part No. |
|---|---|---|---|---|---|---|---|
| 01 | Top Sub | 1.92 kg | 03-BR1-01 | 08 | Piston Case | 3.46 kg | 03-BR1-08 |
| 02 | “O”Ring | 0.01 Kg | 03-BR1-02 | 09 | Guided Sleeve | 0.29 kg | 03-BR1-09 |
| 03 | Check Valve | 0.08 kg | 03-BR1-03 | 10 | Check Ring | 0.1 kg | 03-BR1-10 |
| 04 | Spring | 0.01 Kg | 03-BR1-04 | 11 | Retainer Ring | 0.08 kg | 03-BR1-11 |
| 05 | Valve Seat | 0.46 kg | 03-BR1-05 | 12 | “O”Ring | 0.01 Kg | 03-BR1-12 |
| 06 | Inner Cylinder | 0.38 kg | 03-BR1-06 | 13 | Drive Chuckk | 0.82 kg | 03-BR1-13 |
| 07 | Piston | 1.16 kg | 03-BR1-07 | 14 | Drill Bit | 03-BR1-14 |
Technical Parameter
| Length(Less bit) | Weight | Outer Diameter | Connection Thread | Bit Shank | Hole Range |
|---|---|---|---|---|---|
| 698mm | 8.8Kg | φ56mm | RD40 BOX | BR1 | φ64-φ76mm |
| Working Pressure | Recommended rotation speed | Air Consumption | |||
| 1.0MPa | 1.4MPa | ||||
| 0.8-1.5 MPa | 30-50r/min | 2m³/min | 3m³/min | ||
